BlueNode+ Controller
This versatile cellular controller allows you to measure sensor data, seamlessly communicate, and reliably control field devices. The BlueCentric platform integrates with this controller to effectively automate your utilities, irrigation systems, and light industrial systems. Take advantage of the BlueNode+ controller’s proven reliability and flexibility to simplify and streamline your operations.
Peripherals:
- GSM communication
- 2G / 3G / 4G
- Dual SIM
- Relay outputs x4
- Opto-isolated Inputs x4
- Analog inputs x2
- 4-20mA / 0-15V
- Analog outputs x2
- 4-20mA x1
- 0-15V x1
- Analog inputs x2
- RS-485 port
Features:
- GSM communication
2G / 3G / 4G - Dual SIM
- Rechargeable battery backup
- FOTA updates

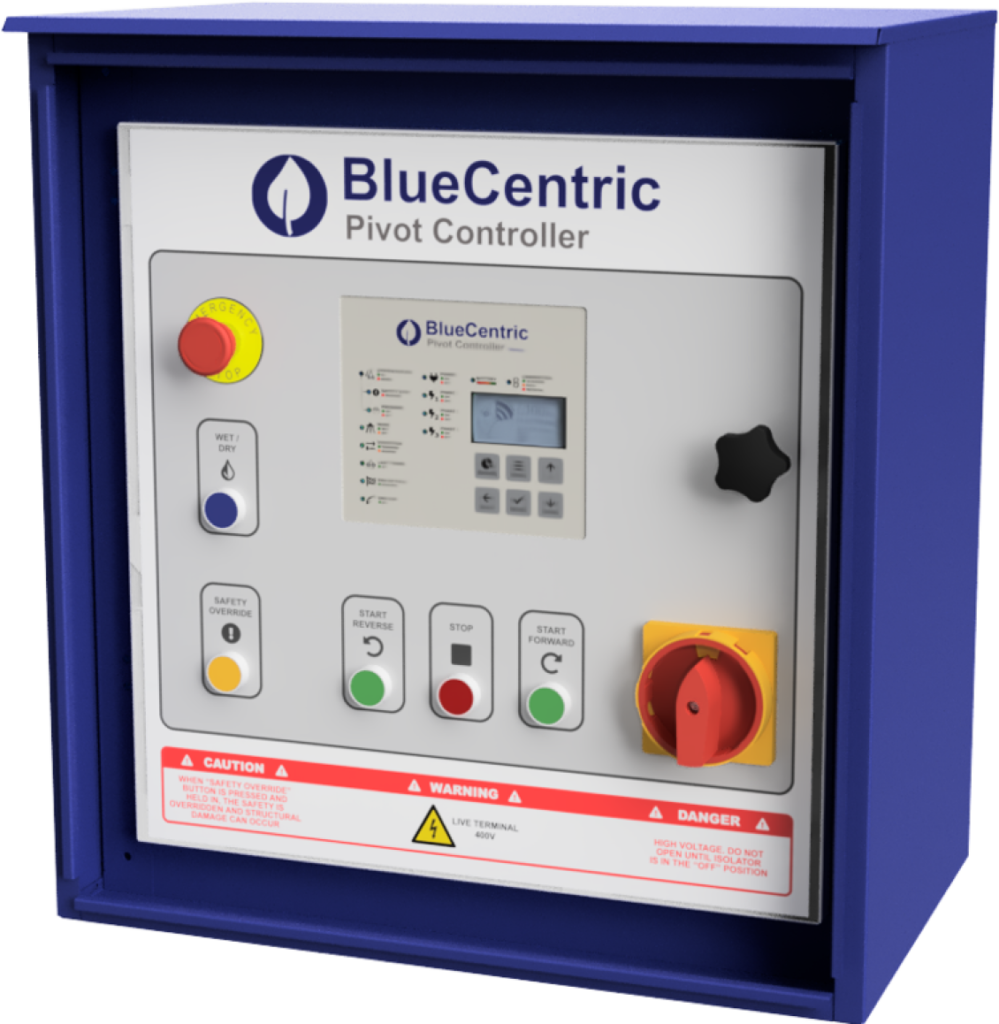

Pivot Controller
Upgrade your irrigation pivot structure using this universally compatible pivot controller with its advanced features and user-friendly interface. This reliable controller has been proven in the field and provides optimised irrigation control, centralised management, and real-time measurements using a smart device. The BlueCentric pivot controller’s sensor interfaces, integrated pump control, advanced control algorithms, and data analytics will elevate your pivot irrigation to a level above the rest.
Peripherals:
- GSM communication
- 2G / 3G / 4G
- Dual SIM
- Auxiliary relay outputs x5
- Digital inputs
- Analog inputs x2
- Ethernet port for network connection
- USB port for local firmware updates
- RS-485 port
Features:
- Rechargeable battery backup
- Linked intelligent pump control
- Absolute encoder or GPS positioning
- External sensor compatibility:
- Flow sensor
- Transducer
- Temperature
- External control:
- Valve
- Pump
- Automatic reverse slack compensation
- Full local and remote control
- FOTA updates
BlueLink One Radio
Use this versatile wireless industrial controller in applications that demand remote wireless access. Our BlueTrail managed wireless network seamlessly connects this controller to the BlueCentric platform to provide reliable sensor measurement and control. Enable your hard-to-reach field installations by deploying this resilient device with its advanced features.
Peripherals:
- Digital outputs x 2
- Analog inputs x 2
- 4-20mA / 0-15V
- RS-485 port
Features:
- Radio (868 MHz LoRa)
- Long range communication
- Rechargeable battery backup
- Wide range power input (5 to 24 VDC)
- Solar power capable
- GPS (optional add-on module)
- FOTA updates

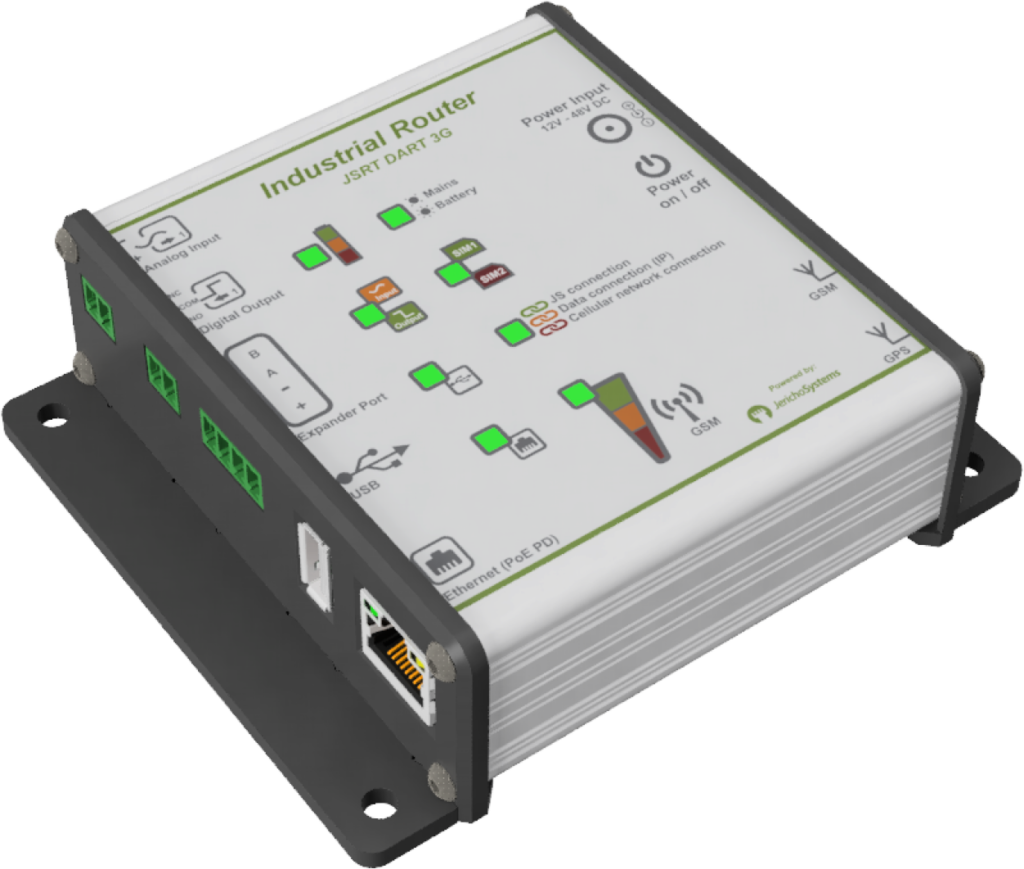

JSRT DART Router
Connect your field devices to the internet using our industrial cellular router with its dual-SIM support on a managed network. The DART is known as a robust and reliable battery backed-up router that keeps on operating during power failures. The DART connects to BlueCentric devices and interfaces to a variety of inputs and outputs via its versatile expander port. Stay connected and controlled with this field-hardened cellular router.
Peripherals:
- GSM communication
- 2G / 3G / 4G
- Dual SIM
- Programmable output x1
- Analog input x1
- RS-485 port
- USB host
- Ethernet port
Features:
- Wide range power input (12 to 48 VDC) with POE support
- Rechargeable battery backup
- GSM jamming detection with alarm output
- GSM triangulation
- FOTA updates
- OTA configuration

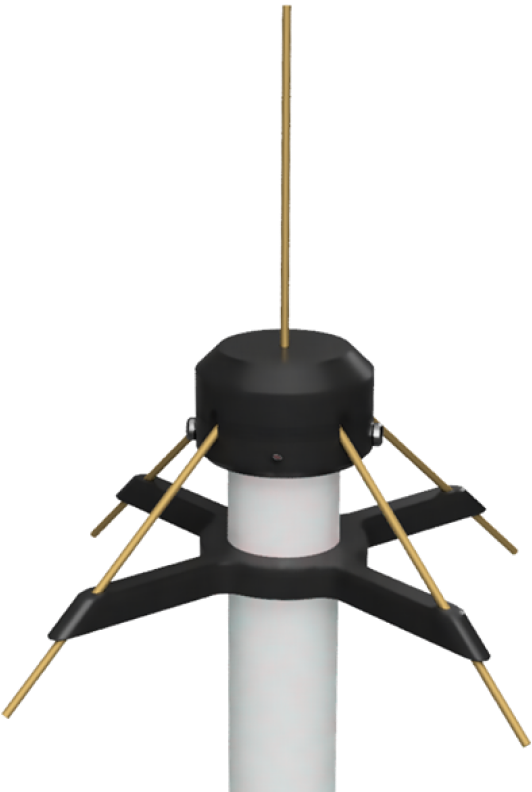

BlueLink Antenna
Ensure reliable connectivity with the BlueLink Antenna, our omni-directional antenna specifically engineered for integration with BlueLink Radios. Good performance of wireless systems is critically dependent on antennas in rural environments where wireless communication is a necessity. Take advantage of high link quality with the BlueLink Antenna and stay connected.
Features:
- Simplistic and robust design
- Easy to mount and connect
- Optimised for BlueLink One Radio
